Aerodrome Briefing

To create an Aerodrome Briefing:

 1.  Hover over the Briefing menu item.
 2.  Select Aerodrome Briefing.
► The briefing definition form opens.
 3.  Fill in the form.
 4.  Click Submit.
► The PIB Result opens (refer to PIB Result).

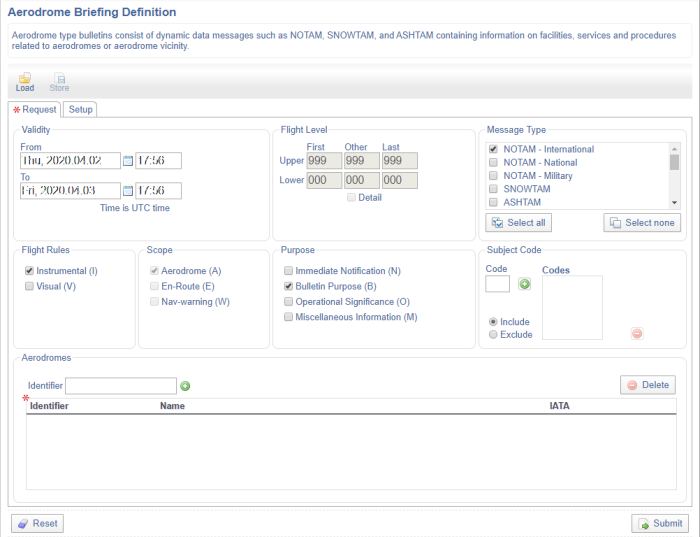

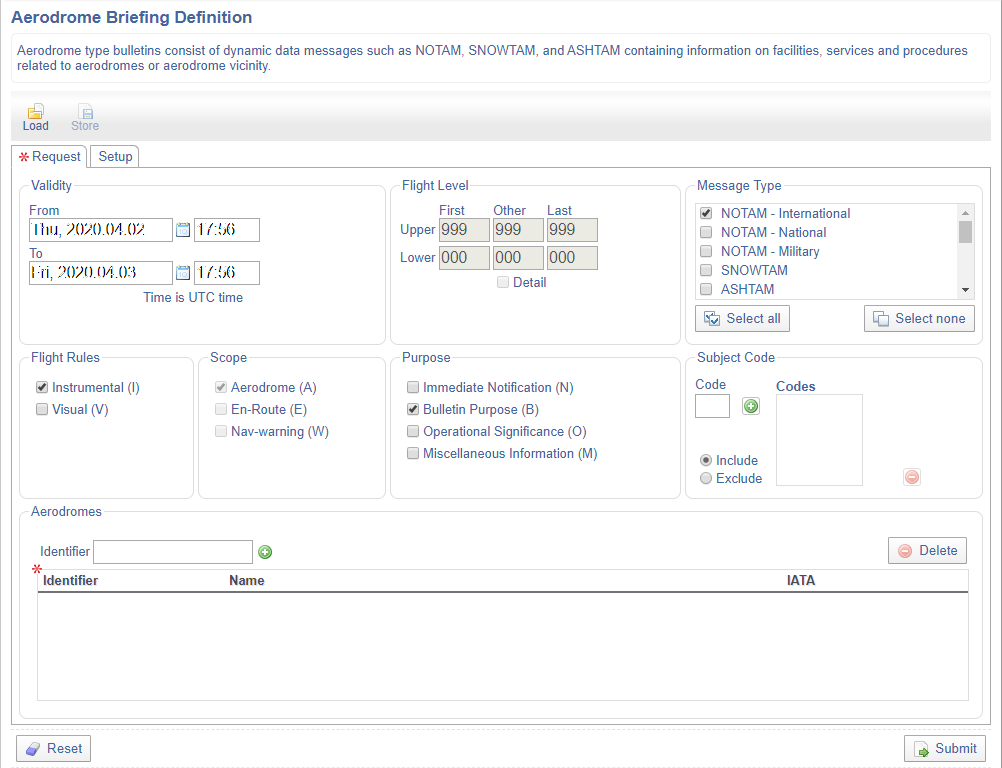

Fig. 5: Aerodrome Briefing Definition

Tab Request

Tab. 12: Aerodrome Briefing Definition – Tab Request
Element Description

Validity

Enter start and end date and time in UTC Coordinated Universal Time (From, To).

The PIB will include all messages that are valid or relevant during this time range.

Flight Level

In an Aerodrome PIB the First Upper Flight Level is automatically set to 999 and the First Lower Flight Level is set to 000.

Message Type

Select the message types to be included in the PIB.

You must select at least the one message type.

Flight Rules

Select the flight rules.

Scope

The scope is automatically set to Aerodrome (A).

Purpose

Select the purpose. The purpose restricts the types of NOTAM Notice to airmen that are listed in the PIB.

Subject Code

You can include and exclude NOTAMs with a certain subject code.

INFO  To disable this feature, leave the list Codes empty.

To include/exclude a subject code:

 1.  Select Include or Exclude.
 2.  Enter a subject Code.
 3.  Click .
► Your input is added to the list Codes.

To remove a code:

 1.  Select it from the list.
 2.  Click .

Aerodromes

You must enter at least one aerodrome.

The PIB will include all messages releted to the aerodromes.

To enter an aerodrome:

 1.  Enter an aerodrome location indicator (4 letter ICAO International Civil Aviation Organization code) in the field Identifier.
 2.  Click .
► The aerodrome is added to the list.

To remove an aerodrome:

 1.  Select it from the list.
 2.  Click Delete.

Tab Setup

For details refer to Briefing Tab Setup.

Tab Map

For details refer to Briefing Tab Map.
